AiRaman Cloud based Raman

Available from SpectrEcology

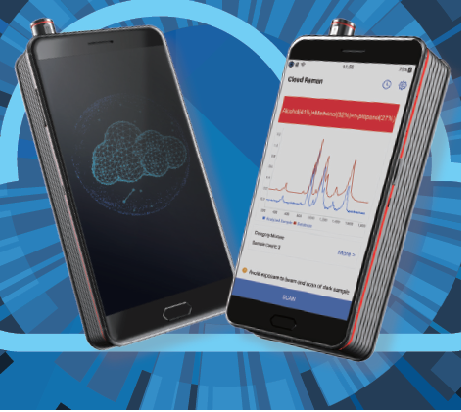

Cloudminds XI is a hand held miniature Raman Spectrometer that uses a Smart phone as the user interface and connects to cloud based Raman spectral libraries and advanced deep-leaning identification algorithms.

Smart Handheld Raman Spectrometer
Light weight (400g)
Ruggedized for field use
Unique proprietary optical design for maximum sensitivity
500 mW 785nm laser excitation
Smart Control, automated settings
Cloud based analytics & proprietary Deep Learning AI algorithm
Factory and User built spectral libraries for identification of pure samples and mixtures
Cloud based data and security management

Spectrometer
Excitation 785nm laser
Laser Power out up to 500mW. Adjustable
Spectral Range 200 - 1800 cm-1
Spectral resolution 8-11 cm-1
Spectrograph f/2
Integration Time automatic
Sample Analysis Time 3 sec (typical)
Dimensions (cm) 15.9 x 7.9 x 2.7
Weight 410 g, 510g with rugged case
Operating Temperture -10C - +50C

Smart Phone & Cloud Data
Operating Platform Embedded Smart Phone Operation
Operating Software Smart phone Apps (Android)
Network Connection Wifi, Bluetooth, 4G-LTE
Data analysis local, cloud based with deep learning algorithm
Spectral Libraries standard factory and user custom built
RGB camera 8 or 16 MP
Data Port USB 2.0
Battery 5700 mAh



Cloud Data Management
Device Event, location, results logging, reporting
User Password authentication, role based access
Cloud Multi-tenant, Virtual Private Cloud
