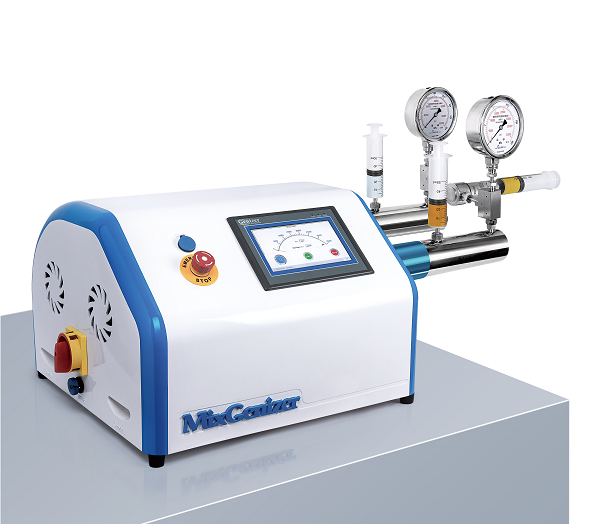

MixGenizer, a High Pressure Micromix Homogenizer

MixGenizer, a High Pressure Micromix Homogenizer

MixGenizer is a homogenizer specially for mixing and homogenizing the sample fluids from two or more inlet ports. The two streams are injected into the Genizer ultra high pressure dual pumps from the inlet reservoir and mix homogenously at the diamond mixing chamber where the fluids pass through the fixed micro-channels and experience high shears and strong impacts. It can be used for laboratory preparation of liposomes, nanosuspensions, microemulsions, lipid microsphere, nanoprecipitations, nanoemulsions, nanocrystals, infusion solutions, fine chemical reaction and etc.

Main Features of the MixGenizer:
 Diamond interaction chamber technology
 Flow rate: ~ 100 ml/minute @ 30,000 psi
 Weight: approximately 58 kg
 Minimum sample volume: 10 ml
 Touch screen, PLC control panel
 Application: Nano emulsions, liposomes, fat emulsions, nano dispersion, cell disruption, deagglomeration, graphene, and carbon nanotube
