Polypropylene Vertical Air Flow Laminar Clean Bench – PRO

Product Details

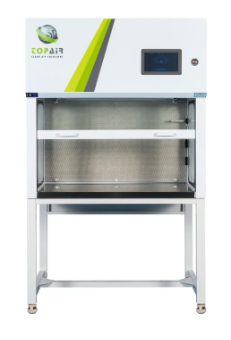

(Click to enlarge image) TopAir Systems provides high-quality, Vertical Laminar Clean
Benches. Clean benches are designed to supply a clean
controlled work environment meeting Class 100/ISO 5
Cleanliness level. The clean bench is tested according to
USA Federal Standard 209E/ISO 14644-1/CE.
TopAir’s clean benches draw air from the room or hall
space, pass it through a HEPA filter using a fan, and then
distribute the clean air across the working area. In vertical benches, the filtered air is
directed downwards
through a filter installed at the top of the bench.

Structure:

8 mm welded polypropylene with high chemical
resistance
stainless steel 304 worktop, (SS316 optional)
5 mm safety glass front window with counterweight
system
Side windows for better visibility
Optional Integrated Particle Monitoring System (IPMS)
The IPMS measures particle concentration in real-time, monitoring the cleanliness
level 24/7. Its display clearly indicates whether the cleanliness level complies with
ISO-5, and alerts when the workspace has been contaminated or needs to be
serviced.

Red Light Alert:

Whenever there is an air velocity failure, a red light inside the unit
switches on and the system automatically switches off. This enables convenient
detection of failures from a distance, facilitating notice even for the hearing-impaired.
