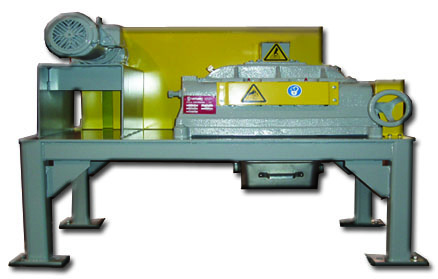

Sturtevant Roll Crusher

Product Details

Sturtevant Roll Crushers are ideal for laboratory and limited-capacity production operations for the aggregate, minerals, ceramics, chemicals and sintered metals industry. Whether the application is for coarse crushing to intermediate crushing or a controlled reduction of material to limit fines product, Sturtevant Crushers are unsurpassed.
Manufactured in heavy-duty, cast iron construction, Sturtevant Crushers are built for decades of dependable service. Machine features easy access to wear areas to allow quick inspection and cleaning prior to a change of sample or product material.
Applications:
• Aggregates
• Ceramics
• Chemicals
• Minerals
• Sintered Metals
Benefits:
•Heavy-duty cast iron construction
.Material reduced by compression between opposing rolls
.Uniform granular product with minimal fines
.Hardened rolls for low wear
.Product size adjustable during operation
.Spring cushioned rolls and bearings
.Up to 4:1 material reduction ratio
Roll Diameter - Three Models: 8, 12 & 20 inches

Feed Size:
¾ inch – 1 ½ inch

Fineness:
8 x 5 Model: ½ inch to 20 mesh
12 x 12 Model: ½ inch to 20 mesh
20 x 14 Model: ½ inch to 1/16 inch
Capacity Range:
500 lbs – 44 tons
Sturtevant Inc has been processing materials in crushing, grinding, blending and air classifying equipment since 1883.
